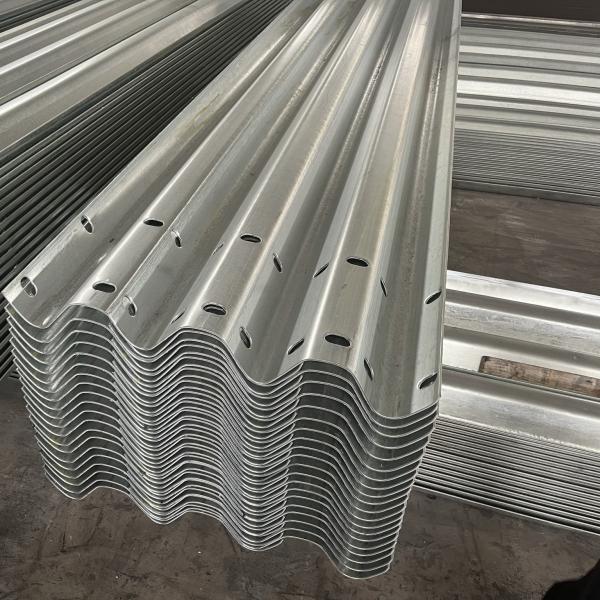

Crash Barrier Galvanized Traffic Protection Strong Steel High Speed Way Guardrail

Ask Lasest Price
Brand Name :	TISCO
Model Number :	GB/T18226,JT/T281-1995,AASHTO,M-180,RAL-RG620,SPS98S or any other International Standards
Certification :	SGS ISO ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2000MT/Month
Delivery Time :	3~15 days

Add to Cart

Product Details
Company Profile

Crash Barrier Galvanized Traffic Protection Strong Steel High Speed Way Guardrail

Crash Barrier Galvanized Traffic Protection Strong Steel High Speed Way Guardrail

Product Description:

How strong are guardrails?

Guardrail systems must be capable of withstanding at least 200 pounds of force applied within 2 inches of the top edge, in any direction and at any point along the edge, and without causing the top edge of the guardrail to deflect downward to a height less than 39 inches above the walking/working level.

What is the difference between a guard rail and a handrail?

Guardrails, when installed correctly, prevent falls off an elevated edge while protecting a child's head from getting stuck. A key difference between guardrails and handrails is that guardrails are a lifesaving building component, whereas handrails are used for support while walking along a path.

American AASHTO-M180 Technical Standard W-beam highway guardrail
TYPE	Overall Length (mm)	Effection Length (mm)	Norminal Uncoated Thickness (mm)
TYPE 1	4130	3810	2.67
TYPE 2	4320	4000	2.67
MECHANICAL PROPERTIES	Material grade: S355JR Yield Point, minimum, 345Mpa (50000psi); Tensile Strength, minimum 483Mpa (70000psi); and Elongation, in 50mm (2 in.),minimum, 12 percent.
NOTES	Thickness of Zinc coating: 550g or 1100g; The beams may galvantzed before or after fabrication; We can customize the length and thickness according to customer requirements.

Normal Sizes	Length(mm):2000/2320/3200/3810/4000/4320 W:306/310/312/380 Height(mm):80/82/83/85 Thickness(mm) :2.5/2.75/3.0/4.0 Available in different sizes.
Materail	S235JR,S355JR
Profile	W beam , Thrie beam
Surfacce treatment	Hot dipped galvanized or plastic sprayed coating
Applicabele Standards	JT/T2811995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL RG620 (German) or any other International Standards
Base Steel	Grade S235JR ( according to DIN EN 10025 and Gr. Daccording to ASTM A283M) or S355JR (ASTM A529M 1994)
Zinc layer thickness	550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request
Features	Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security,environmental protection, etc.
Relevant Parts	Required for Guardrails Post, Spacer (C, U and Sigma types etc) and Fasteners, Bolts&Nuts,Terminal,Reflectors
MOQ	100pcs
Price Terms	FOB,CFR,CIF
Payment Terms	T/T,L/C at sight

Product Details:

Application:

Packaging way :

standard seaworthy export packing,other types of packing can be customized as every requirement.

About Us:

We were set up in 2008 and produces guardrails, traffic poles and related accessories to AASHTO M180, EN1317 and Chinese GB31439 standards. It has in a short time of its existence obtained the management systems certifications ISO9001:2015, ISO14001:2015 and ISO45001:2018.

FAQ:

Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.

Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.

Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.

Q4:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
