ISO BV 430 Stainless Steel Coil Corrosion Resistance Hot Rolled 2mm 5mm Thick

Ask Lasest Price
Brand Name :	TISCO
Model Number :	201 304 316L 310S 409L 420 420j1 420j2 430 431 434 436L 439
Certification :	SGS ISO ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2000MT/Month
Delivery Time :	3~15 days

Add to Cart

Product Details
Company Profile

ISO BV 430 Stainless Steel Coil Corrosion Resistance Hot Rolled 2mm 5mm Thick

ISO BV 430 Stainless Steel Corrosion Resistance Hot Rolled 2mm 5mm Thick Coil

Description:

Stainless Steel 430 1.4016

This data sheet applies to stainless steel 430 / 1.4016 hot and cold-rolled sheets/plates and strips,semi-finished products, rods, wire, sections and bright products for general purpose.

Application

Rail and road vehicles, container building, warehouse and transport devices for the sugar industry, sound absorber, coal mining. The steel is resistant to intergranular corrosion.

Processing

Cold forming with low amount of deformation is easily feasible above room temperature.

Sharp chamfers parallel to the direction of rolling have to be avoided.

Sheets with greater thicknesses and/or higher amount of deformation should be preheated up to 200 - 400 °C.

If applicable, a hot forming at 700 - 900 °C can be necessary. The corrosion resistance is affected by annealing colors, which occur after hot forming or welding, or scalings.

These have to be removed by pickling (pickling solution), grinding or sand blasting.

It is only allowed to use iron-free tools for these workings. Machining does not differ

from machining of non-alloy carbon steels with comparable or corresponding strength.

Remark

According to DIN EN 10095, appendix D material 1.4016 is deemed to be heat resisting.

Chemical Compositions

Element	% Present (in product form)
	C, H, P	L
Carbon (C)	≤0.08	≤0.08
Silicon (Si)	≤1.00	≤1.00
Manganese (Mn)	≤1.00	≤1.00
Phosphorous (P)	≤0.040	≤0.040
Sulfur (S)	≤0.015	≤0.0301)
Chromium (Cr)	16.00 - 18.00	16.00 - 18.00
Iron (Fe)	Balance	Balance

Mechanical properties (at room temperature in annealed condition)

Product Form	Thickness t or diameter4) d mm max	Yield Strength Rp0.2		Tensile Strength	Elongation min. in %
Product Form	Thickness t or diameter4) d mm max	N/mm2 (longitudinal)	N/mm2 (transverse)	Rm N/mm2	A80mm1) ˂3mm thickness (longitudinal and transverse)
C	8	260	280	450 - 600	20
H	13.5	240	260	450 - 600	18
P	252)	240	260	430 - 630	20
L3)	100	240	-	400 - 630	20 (longitudinal)

Minimum values of the 0.2 %-Yield strength of ferritic steels at elevated temperatures

Product	Heat Treatment Condition	0.2 %-Yield strength at the temperature °C
Product	Heat Treatment Condition	100	150	200	250	300	350	400
C, H, P, L	Annealed	220	215	210	205	200	195	190

Reference data on some physical properties

Density at 20°C kg/m3		7,700
Modulus of Elasticity kN/mm2 at	20°C	220
	200°C	210
	400°C	195
	500°C	-
Thermal Conductivity W/m K at 20°C		25
Specific Thermal Capacity at 20°C J/kg K		460
Electrical Resistivity at 20°C Ω mm2 /m		0.60

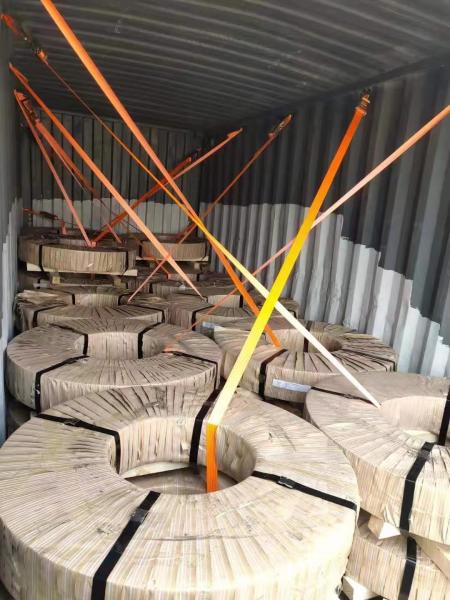

Shipping:

Quality inspection:

Application

About us:

workshop:

service:

FAQ:

Q:What do your factory do regarding quality control?

A: We have obtained ISO, CE and other certifications. From materials to products, we check every process to maintain good quality.

Q:How about MOQ?

A: The minimum order quantity is 1 ton, which can be customized according to customer requirements. Please feel free to leave us message if you have any question about us and our products.

Q:Can you make the product according to our requirements?
A: Yes, we will strictly follow your requirements, such as the way of the package, the length of the product, the treatment of the product and so on.

Q:What is your way of the surface treatment?

A:We can paint oil as your requirement on the product.
