Food Grade 5052 Aluminum Pipe Thickness 0.3-6mm 5000 Series Aluminum Tube

Ask Lasest Price
Brand Name :	TISCO
Model Number :	1010 3030 5052 6061 7075
Certification :	SGS ISO ROHS
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	8000MT/Month
Delivery Time :	3~15 days

Add to Cart

Product Details
Company Profile

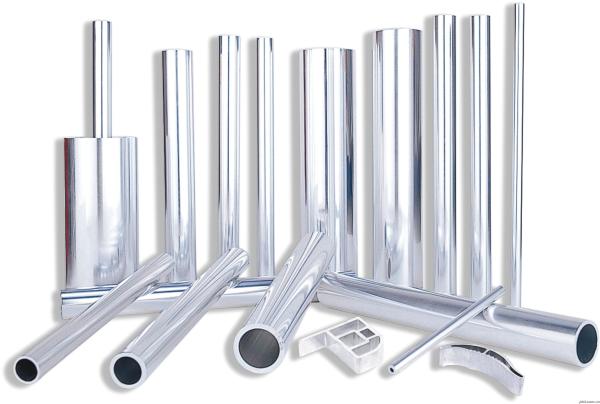

Food Grade 5052 Aluminum Pipe Thickness 0.3-6mm 5000 Series Aluminum Tube

Food Grade Aluminium Pipe thickness 0.3-6mm Material 5052

5052 aluminum is: • Part of the 5xxx series of aluminum. Grades in this family are alloyed using magnesium (2.5%) and possess moderate-to-high strength characteristics. These grades are considered to have good weldability and resistance to corrosion.

5052 aluminum alloy has a yield strength of 193 MPa (28,000 psi) and an ultimate tensile strength of 228 MPa (33,000 psi), which means it is moderately strong when compared to other some popular alloys. Shear strength is the strength of a material when being “sheared” by opposing forces along a plane.

Item	Aluminium pipe/pipes Aluminium Tube/Tubes/tubing
Material	Aluminium
Grade	1000 series: 1050,1060,1070,1080,1100,1435, etc 2000 series: 2011,2014,2017,2024, etc 3000 series: 3002,3003,3104,3204,3030, etc 5000 series: 5005,5025,5040,5056,5083, etc 6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc 7000 series: 7003,7005,7050,7075, etc
standards	ASTM, ASME,EN, JIS, DIN,GB/T etc
Size	Outer Diameter:3-250mm
	Wall Thickness: 0.3-50mm
	Length: 10mm -6000mm
Surface treatment	Mill finish Anodized Electrophoresis Powder coating Wooden grain Sand blast
Surface colors	Nature, silver, bronze, champagne, black, gloden, etc As customized
Temper	T3-T8
Moulding/Pattern	1. Using our moulds, no fee 2. Using customer drawing, opening mould, usually about 5 tons the moulding fee is free. 3. Can be diguessed.
Application	1. Lighting,solar reflector plate. 2.architectural appearance, interior decoration:ceiling,metope, furniture,cabinets and so on. 3.elevator,nameplate, bags. 4.automotive interior and exterior decoration. 5. Interior decoration: such as photo frame. 6.household appliances, refrigerator, microwave oven, audio equipment. 7. Aerospace and military aspects. 8, machinery parts processing, mold manufacturing . 9. chemical/insulation pipeline coating.

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Zr
Impurity	Al	2014	0.5-1.2	0.7	3.9-5.0	0.4-1.2	0.2-0.8	0.1	0.25
0.15	-	0.15	Rest	2017	0.2-0.8	0.7	3.5-4.5	0.4-1.0	0.4-0.8
0.1	0.25	0.15	-	0.15	Rest	2024	0.5	0.5	3.8-4.9
0.3-0.9	1.2-1.8	0.1	0.25	0.15	-	0.15	Rest	5052	0.25
0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1	-	-	0.15	Rest
5056	0.3	0.4	0.1	0.05-0.20	4.5-5.6	0.05-0.20	0.1	-	-
0.15	Rest	5083	0.4	0.4	0.1	0.40-1.0	4.0-4.9	0.05-0.25	0.25
0.15	-	0.15	Rest	5754	0.4	0.4	0.1	0.5	2.6-3.6
0.3	0.2	0.15	-	0.15	Rest	6061	0.4-0.8	0.70	0.15-0.40
0.15	0.8-1.2	0.04-0.35	0.25	0.15	-	0.15	Rest	6063	0.2-0.6
0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	-	0.15	Rest
6082	0.7-1.3	0.5	0.1	0.4-1.0	0.6-1.2	0.25	0.2	0.1	-

Product Details:

Workshop:

Processing:

Other product:

FAQ:
Q1: Can you do OEM for me?
A1:We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q2:Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
